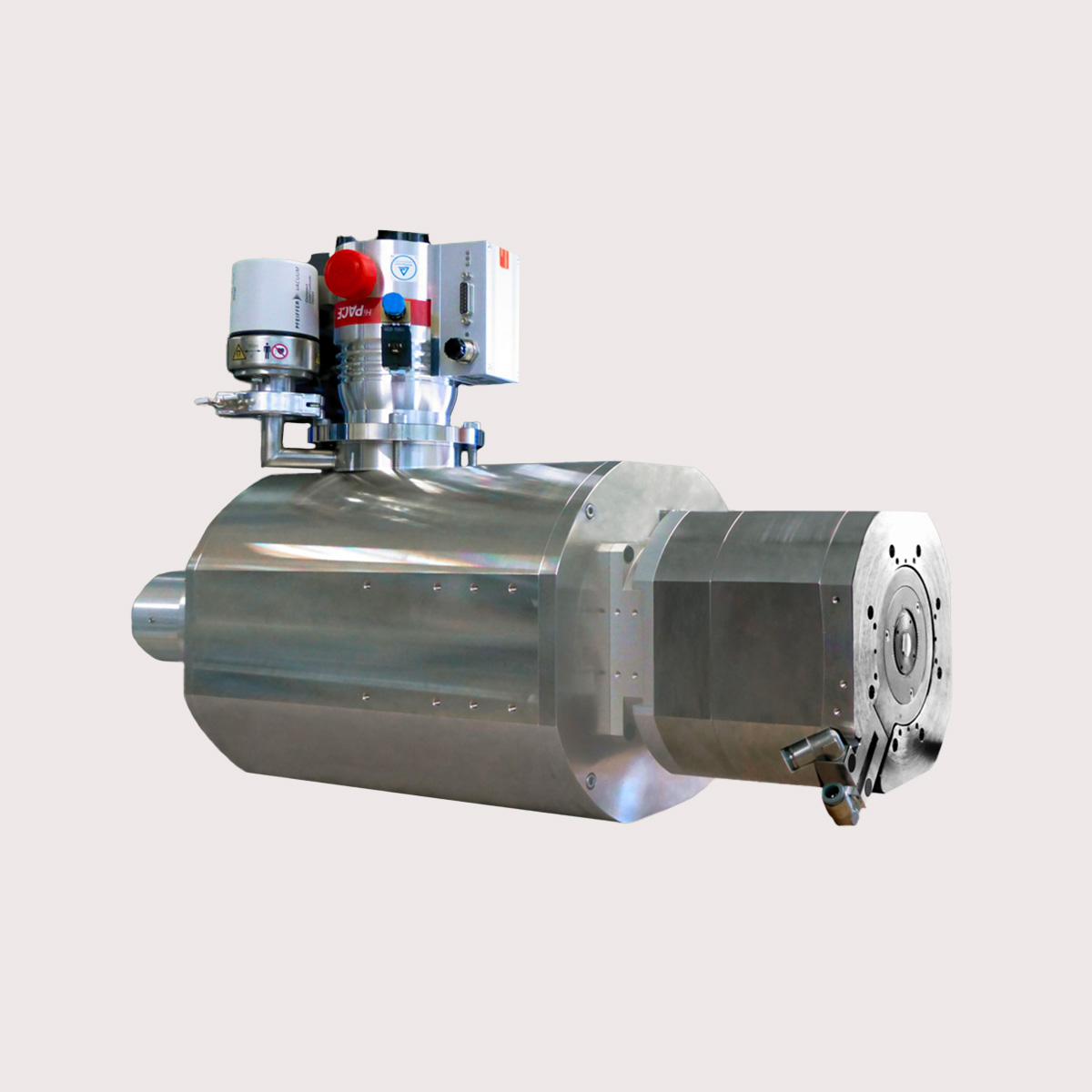

X-Ray Tube THE Line
The microfocus X-ray tube XWT-160-THE offers an outstanding target power of 25 watts, optimally combining resolution, power and magnification capability. This makes it an ideal choice for applications requiring high levels of precision, even in high-intensity industrial settings.
Highlights
Why choose X-Ray Tube THE Line?
Perfect for inline and offline tomography
The tube is designed for use in both inline and offline computed tomography systems as well as laminography and planar CT. This application versatility allows use in a wide range of inspection environments, from manufacturing to research and development.
Stable emission and protected components
With Automatic Intensity Control (AIC), the tube ensures continuous and uniform radiation intensity throughout the operating cycle. The automatic vent valve helps prolong the life of vacuum components while maintaining performance over time.
High resolution and effective cooling
With a JIMA resolution of 2.0 µm, the tube enables ultra-high definition analysis. It also features a head-tube cooling system that ensures the thermal stability needed to maintain a constant focus position, even under high loads.
Complete and ready-to-use configuration
The system includes a transmission tube with turbo pump, vacuum gauge and electronic control unit, a high-voltage generator with cable, a pre-vacuum pump with hose, the tube controller with power supplies and safety relays mounted on 19" panels, the complete set of cables for electrical connections, and a case with spare parts, documentation and operating software.
